Common Tasks ​

List Variants ​

This Gradle task generates a JSON file containing information about the project's dependency variants and fallback variants.

Steps: ​

  1. The task scans the project's tasks for those with names containing the ExtractDependencies postfix.
  2. It extracts the relevant variant names and writes them to a dependency_variants.json file in the plugins-dependencies directory under the app's build directory.
  3. It retrieves missing dimension strategies and their fallback values from the Android product flavors and writes them to a fallback_variants.json file in the same directory.

Example: dependency_variants.json ​

json
{
  "example-one-plugin": ["debug", "release", "benchmark"],
  "example-two-plugin": ["debug", "release", "benchmark"],
  "hello-world-plugin": ["debug", "release", "benchmark"],
  "sample-app": ["debug", "release", "benchmark"]
}

Example: fallback_variants.json ​

json
{
  "australia": "withGooglePay",
  "bahrain": "withMauth",
  "bangladesh": "withMauth",
  "bermuda": "withMauth",
  "chiiom": "withMauth",
  "china": "withMauth",
  "egypt": "withMauth",
  "expat": "withMauth",
  "hongkong": "withMauth",
  "india": "withMauth",
  "indonesia": "withMauth",
  "macau": "withMauth",
  "malaysia": "withMauth",
  "malta": "withMauth",
  "mexico": "withMauth",
  "msb": "withMauth",
  "philippines": "withMauth",
  "qatar": "withMauth",
  "singapore": "withMauth",
  "srilanka": "withNone",
  "taiwan": "withMauth",
  "uae": "withMauth",
  "uk": "withMauth",
  "us": "withMauth",
  "vietnam": "withMauth"
}

Output Location ​

The generated JSON files are located at build/plugins-dependencies under the app module.

Command to Run ​

Run the task locally using the following command:

shell
./gradlew listVariants

Extract Dependencies ​

This Gradle task extracts dependencies for a specific variant of the project.

Steps: ​

  1. The task uses the variantNameProperty to identify the variant and retrieves the associated dependencies.
  2. It copies the extracted .aar files into the directory located at build/plugins-dependencies/zip under the app module.

Example: Schema Structure ​

The extracted dependencies are organized in a structured location for further use:

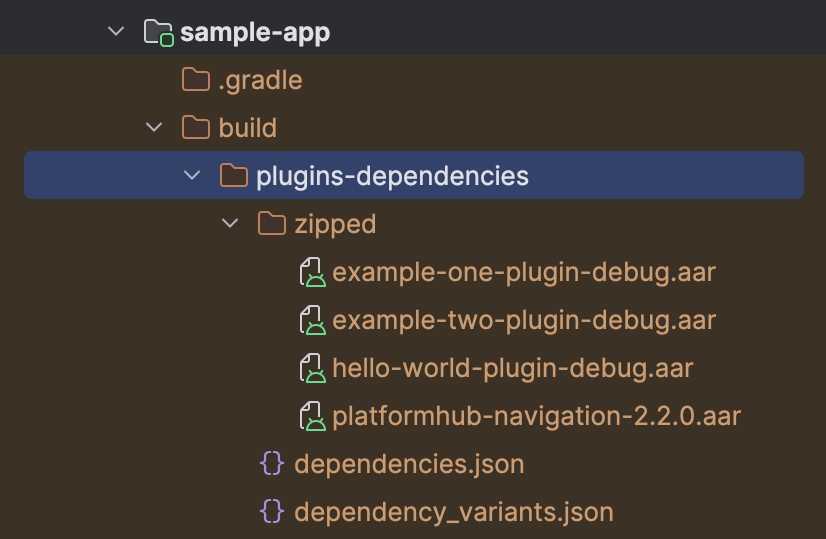

Extracted dependencies structure

Command to Run ​

Run the task locally using the following command:

shell
./gradlew :<module>:<variantName>ExtractDependencies

Recommendation ​

Instead of running this standalone task for the app module, it is recommended to run the Extract All Dependencies task.

Extract All Dependencies ​

This task triggers the Extract Dependencies task for the app module and its submodules that have applied the PH Gradle Plugin.

Command to Run ​

Run the task locally using the following command:

shell
./gradlew <appVariantName>ExtractAllDependencies

:::note

Before running this task, you need to run the List Variants task.

:::
